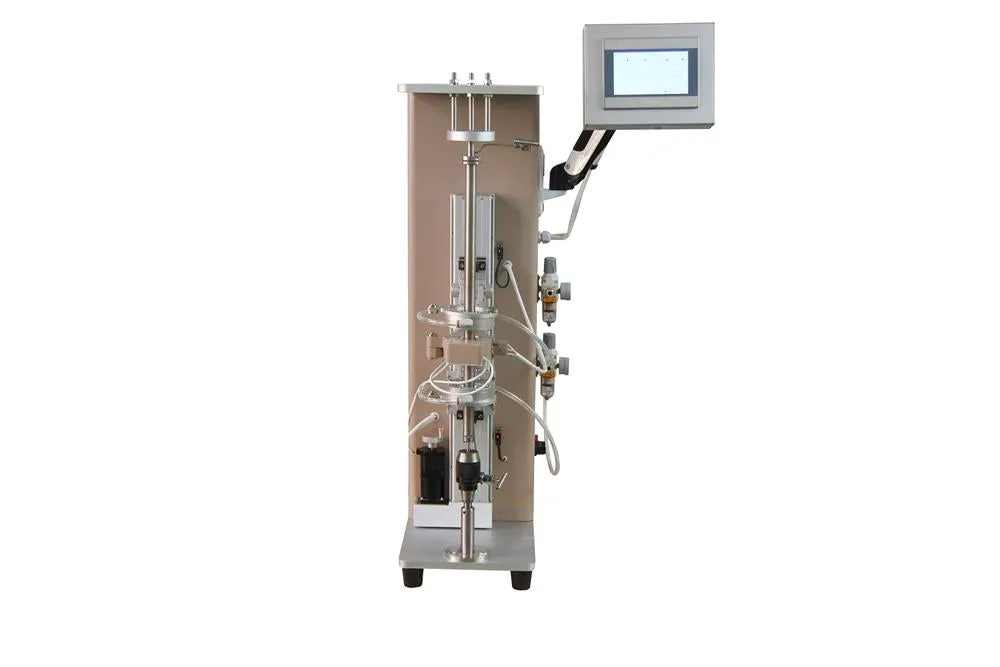

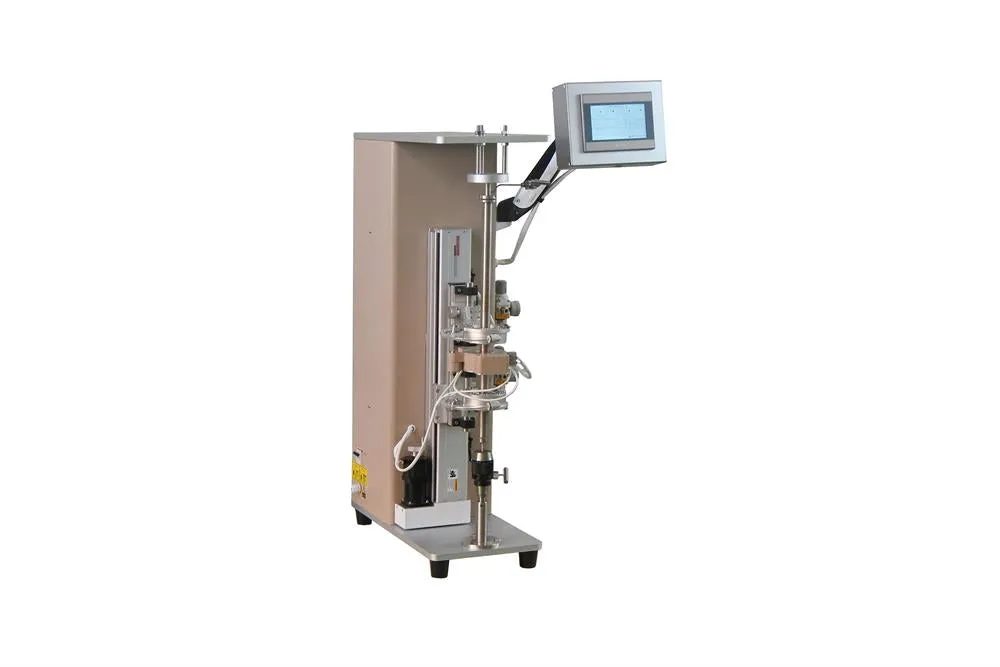

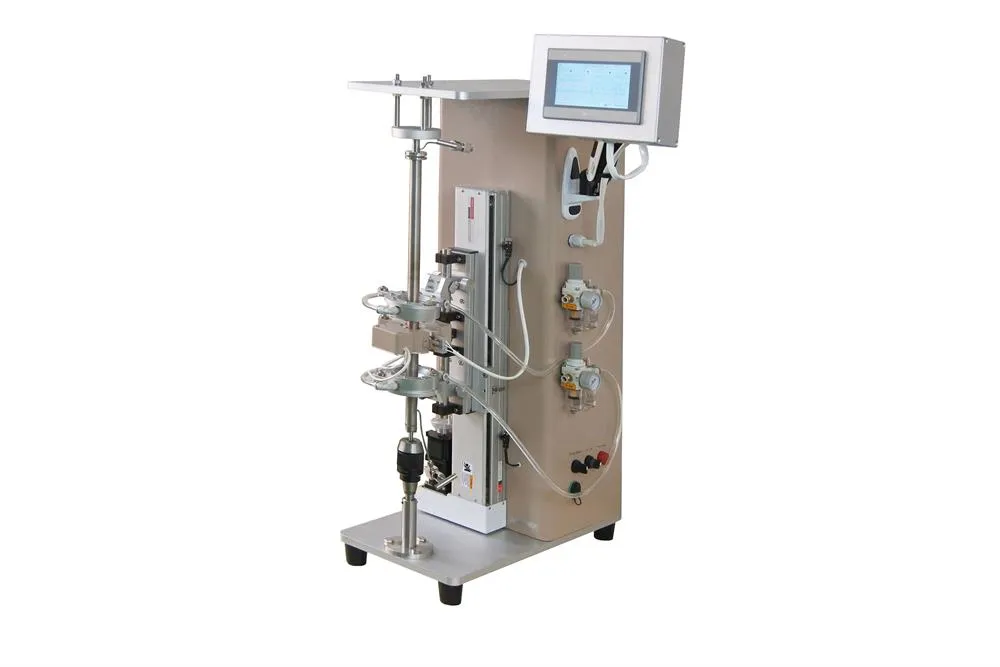

| Feature |
- Vacuum/Atmosphere protective environment for samples.
- Maximum travel distance: 450 mm.
- Single heating element for a maximum temperature gradient.
- Adjustable temperature gradient for versatile materials. (~50°C/cm)
- Moving/Pulling Speed: 0 - 55mm/Hr adjustable.
- Ideal for low-melting-point material directional solidification, purification, and single crystal growth.
|
Heating Module
|

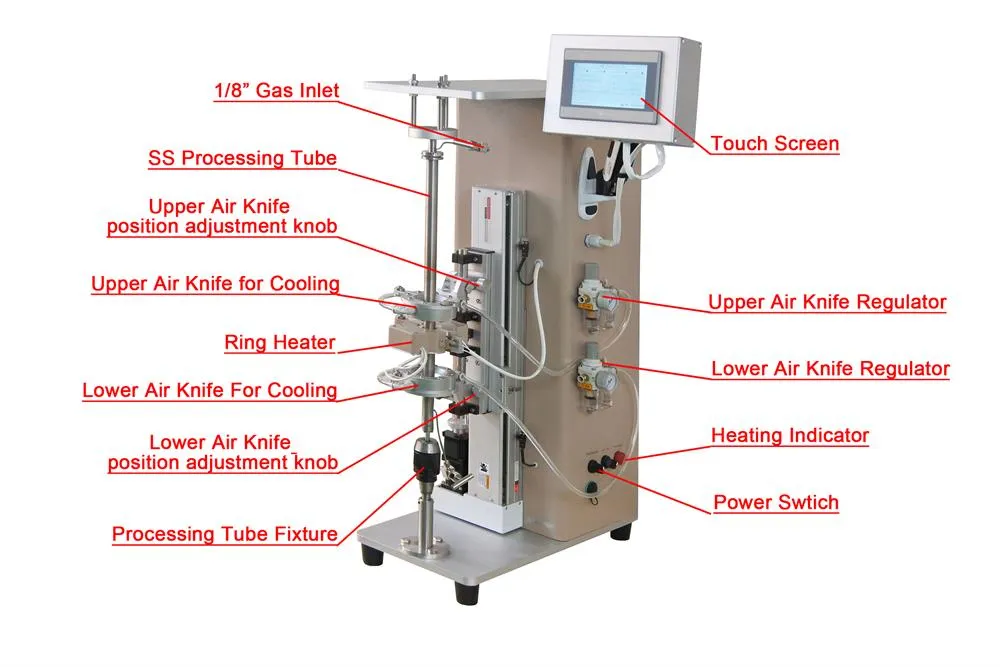

- The Heating Module is made of a resistance wire ring heater, one RTD sensor for temperature control, two extra RTD sensors for temperature monitoring, two cooling air knives. The positions of air knives are adjustable.
- Max. working temperature is 400ºC
- The ID of the ring heater is 32 mm
- The heating zone length is 40 mm
- The heating module is fixed on a linear module to achieve accurate verticle movement.
- The spare heating module is available upon request at the extra cost
|
| Power |
-
AC 220 V, Single Phase, 50/60Hz
- 2 kW
|
Control Panel
|
- Touch Screen, User-Friendly
- Parameters: Travel, distance, speed.
- Max Travel Distance: 450mm.
- Travel Speed: 0 - 55 mm/hr
- Acuracy of position detection: 0.001mm
|
| Working Temperature |
- Fe-Cr-Al Resistance Heating with resistance heating
- Maximum Working Temperature: 400°C ( <1hr)
- Constant heating temperature: 300ºC
- Ramping Rate: 10°C/ Min
- Temperature Accuracy: /- 1°C
- Note: temperature may increase to 1000oC using quartz tube
|
| Tube and Flange |
- 24mm O.D., 20mm I.D. SS 304 tube (Quartz tube is available upon request)
- Top and Bottom stainless steel flange with the 1/8" gas ports
- The quartz tube is available upon request.
- Sample rotation is available upon request.
|
| Zone Melting Mechanism |
- Zone melting or directional solidification is by moving the ring heater in a vacuum-sealed tube.
- Moving speed: 0 - 55 mm/hour
- The travel distance: 0 - 450 mm
- Servo motor controlled
|
| Vacuum Pump (Not included) |
- 10-2 torr via dual-stage mechanical vacuum pump (bottom right picture)
- 10-5 torr via Turbopump (bottom left picture)
- The vacuum pump is optional. Please click to choose a vacuum pump.
-
|
| Compliance |
- CE certified
- NRTL certification is available upon request at the extra cost
|
| Warranty |
- One Year limited warranty with lifetime support
|
Dimension
|
- 750 mm (L) x 700 mm (W) x 1200 mm
|
| Net Weight |
|
| Demonstration Video |
|
| Application note |
- In order to zone melting for metallic materials, you may make a solid rod sample from powder before zone melting via CIP as the link below
- Please review the article " published in EnergyEnvironmental Science for reference
|
