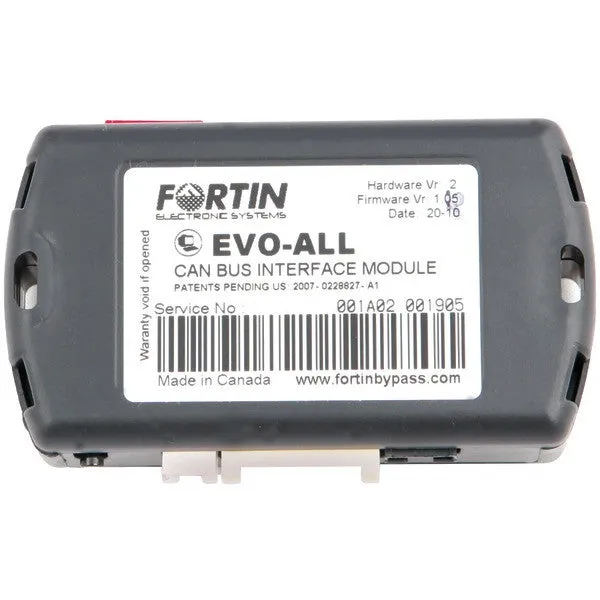

• Universal all-in-one data bypass & interface module
• Compatible with up to 2,300 different 1998-2011 vehicles including push-to-start vehicles
• 3 onboard LEDs for simple programming & diagnostic
• Preloaded, updateable firmware
• 2-way data port for data-to-data communication to remote start, combination & security systems
• 3 CANbus controllers
• 3 general-purpose controllers--J1850, Class-2, encrypted key, etc.
• 2 onboard relays for easier installation on vehicle
• 1 analog controller 0V-12V DC @ 20mV steps--Passlock(R), MUX
• 20-wire general purpose plug for wire-to-wire connection to nondatalink-equipped remote-start & security systems
• Self-learning algorithm automatically detects the vehicle during programming & adjusts accordingly

UPC : 048097311821
Shipping Dimensions : 4.70in X 3.90in X 1.60in
Estimated Shipping Weight : 2.69
