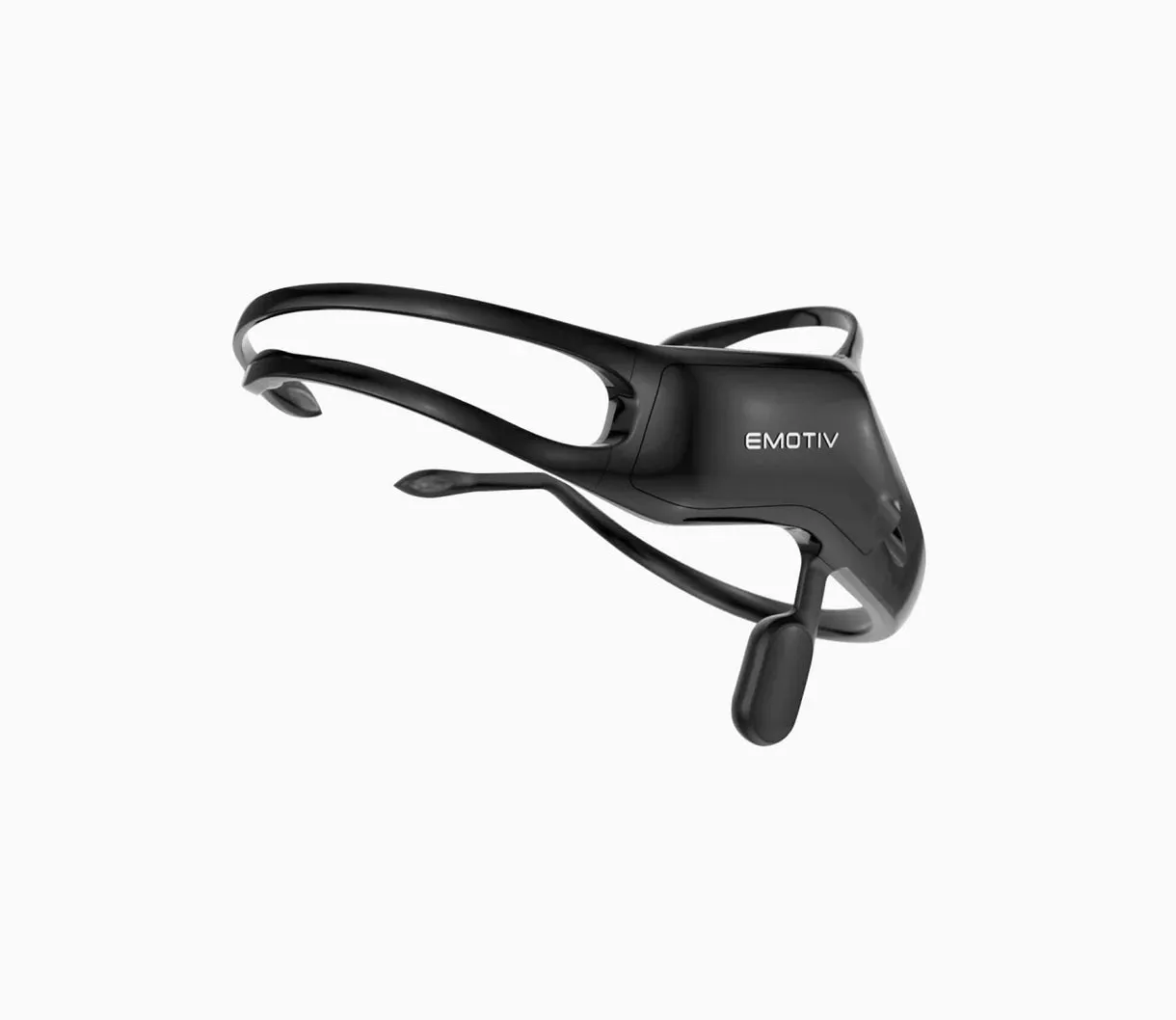

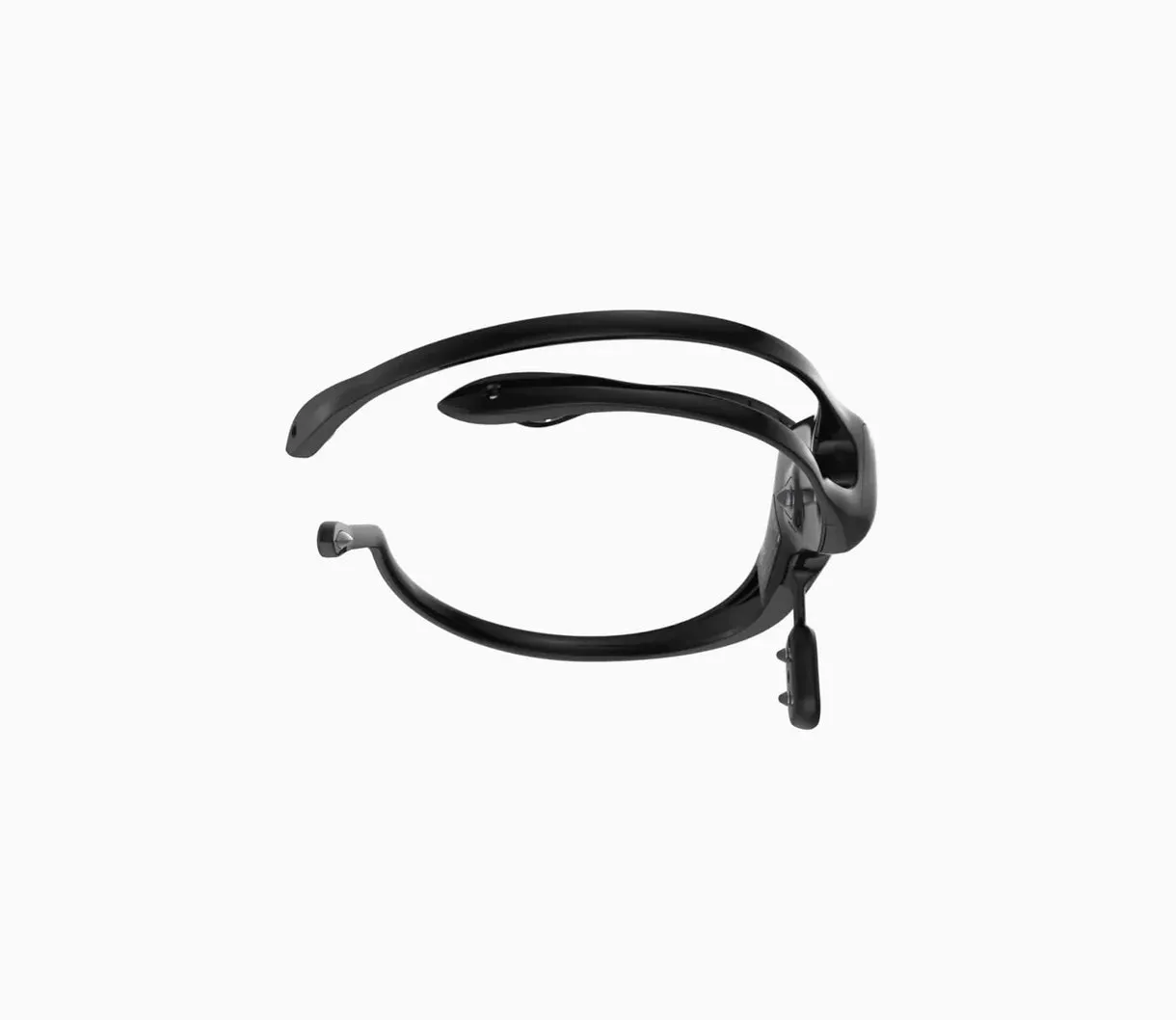

The EMOTIV Insight is a 5-channel prosumer EEG system with semi-dry polymer sensors, delivering clean, reliable signals. Its sleek design and 20-hour battery life make it ideal for self-quantification, brain-computer interfaces, and field research.
Add EmotivPRO subscription
EmotivPRO is an optional extension designed for advanced users, in fields such as research and education. It adds raw EEG real-time data capability, EEG experiments, view, record, and export various data streams, including FFT frequency bands, and Performance Metrics.
Revolutionary EEG Sensor Technology
Insight boasts EMOTIV’s proprietary polymer sensor technology. The hydrophilic material does not need gel to maintain conductivity with the skin*. Instead, the sensors draw moisture from the environment, making Insight our most versatile EEG headset without compromising conductivity.
*Minimal fluid needed.
Discover a New Dimension of Connectivity and Empowerment
Let your mind take the lead, and technology follow. Harness your brain activity to navigate a digital world hands-free, regain independence with assistive technology, or delve into mind-controlled applications. Connect your Insight to EMOTIV BCI, and turn science fiction into reality.
EEG sensors
5 channels: AF3, AF4, T7, T8, Pz
2 references: CMS/DRL references on left mastoid process

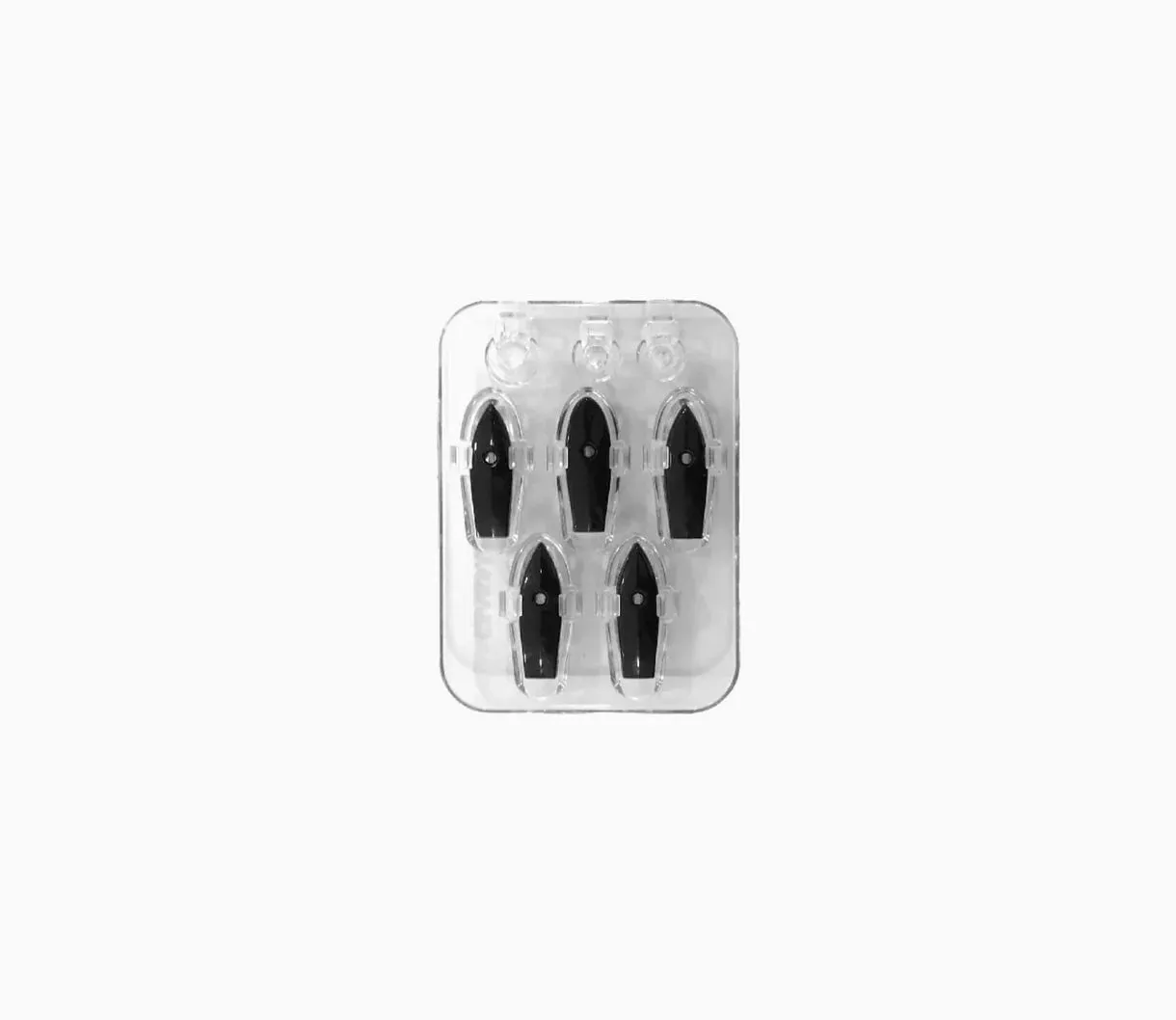

New three prong gummy sensor: for better hair penetration on Pz
Sensor material: Hydrophilic semi-dry polymer
-
EEG signals
Sampling rate: 128 samples per second per channel
Resolution: 16 bits with 1 LSB = 0.1275μV
Frequency response: 0.5-43Hz, digital notch filters at 50Hz and 60Hz
Filtering: Built in digital 5th order Sinc filter
Dynamic range (input referred): 8400 μV(pp)
Coupling mode: AC coupled
Connectivity
Wireless: Bluetooth Low Energy – Improved radio connectivity, updated antenna with Bluetooth 5 support.
-
Motion Sensor
IMU part: ICM-20948
Accelerometer: 3-axis /-8g
Gyroscope: 3-axis /-2000 dps (converted to 4 normalised quaternions)
Magnetometer: 3-axis /- 12 gauss
Sampling rate: 32 Hz
Resolution: 16 bits
Power
Battery: Internal Lithium Polymer battery 480mAh
Battery life: Improve battery life up to 20hrs on a single charge.
-
Detection*
Mental commands: neutral up to 4 pretrained items per training profile
Performance metrics: Excitement, Engagement, Relaxation, Interest, Stress, Focus
Facial Expressions: Blink, Wink L/R, Surprise, Frown, Smile, Clench
Notice: Limited beta support on Ubuntu & Raspberry Pi, subject to OS changes.
