Note: Minimum quantity order is two (2) pieces
Item Description
- thermopile sensor for CO2 measurement
- select the correct CO2 filter to match your concentration levels

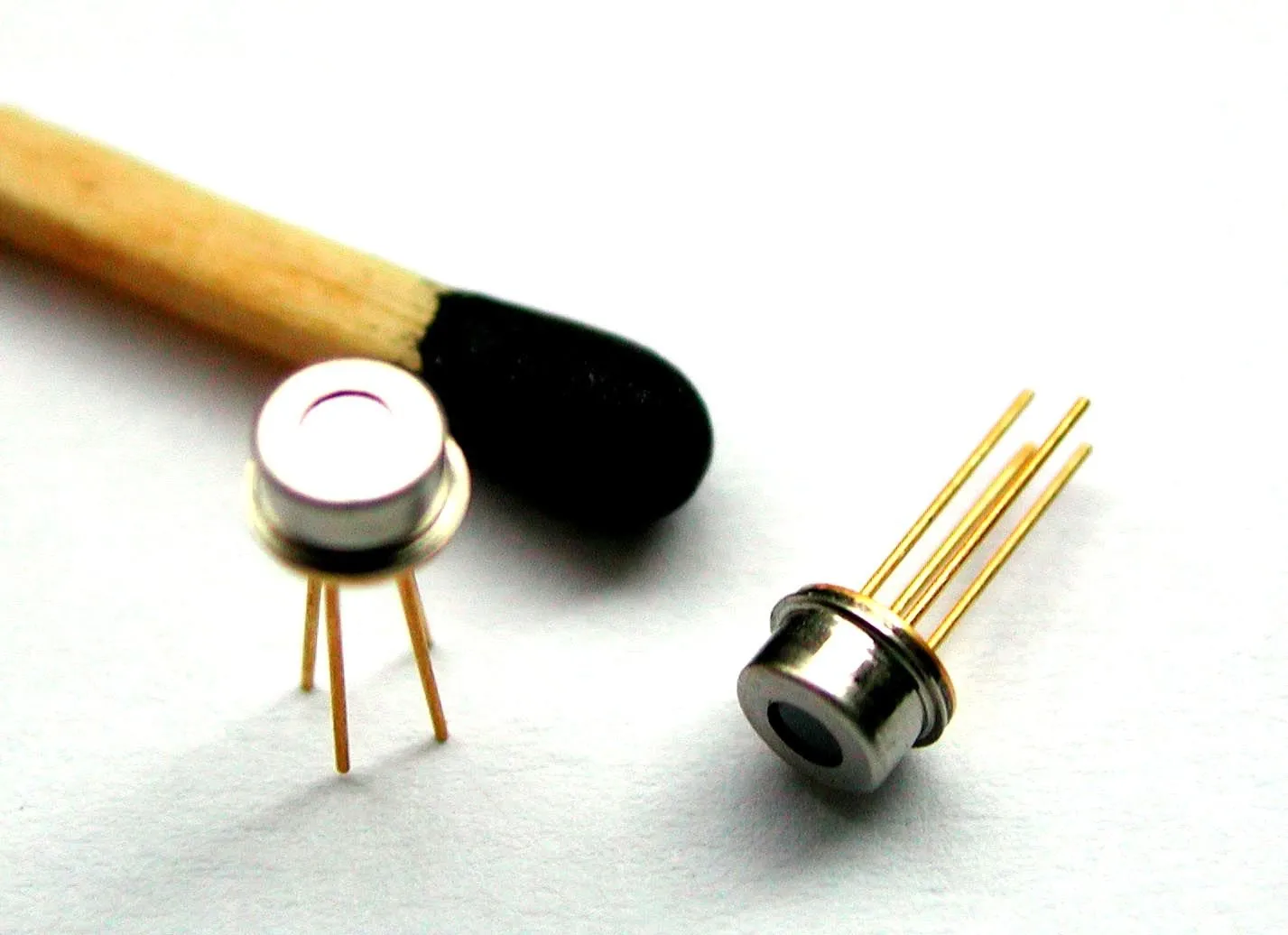

The HMS J21 Fgas Miniature Thermopile Sensor is ideal for gas sensing, with selectable filters for CO2 detection.
The HMS Series of CMOS compatible thermopile sensor chips in TO46 (or TO18) and even smaller transistor housings, features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. The smaller package sizes benefit applications in which sensor mounting is a critical parameter.
The HIS-E222 Multi-channel Sensor contains two thermopile sensors and signal amplification (gain is preset to 4300) all in a TO-39 package.

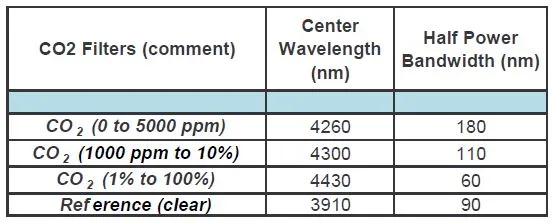

NOTE: For optimum performance you must select the CO2 filter that corresponds to the gas concentration you will be measuring. See the chart below. When ordering select the correct filter in the pull down menu above.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Element Size | 1.2 mm2 |
| Sensitivity | 27 V/W |
| Detectivity | 8.7 E7 cm Hz1/2 / W |
| Time Constant | 10 ms |
| Filter | 4.26 um (CO2) |
| FOV | 120 degrees |
| Package | TO-46 |
