Specs

Model:

BLRTSX160i

Item #:

170234

American:

16 - 160 lbf.in

S.I.:

180 - 1807 cN.m

Metric:

18.4 - 184 kgf.cm

Input Drive:

1/4 F/Sq

Output Drive:

1/4 M/Sq

Tool Weight:

0.59 lb.

Tool Length:

Tool Width:

1.1

Tool Height:

Cal Cert Options Data Set:

Supplied with a Free ISO 17025 Certification of Calibration

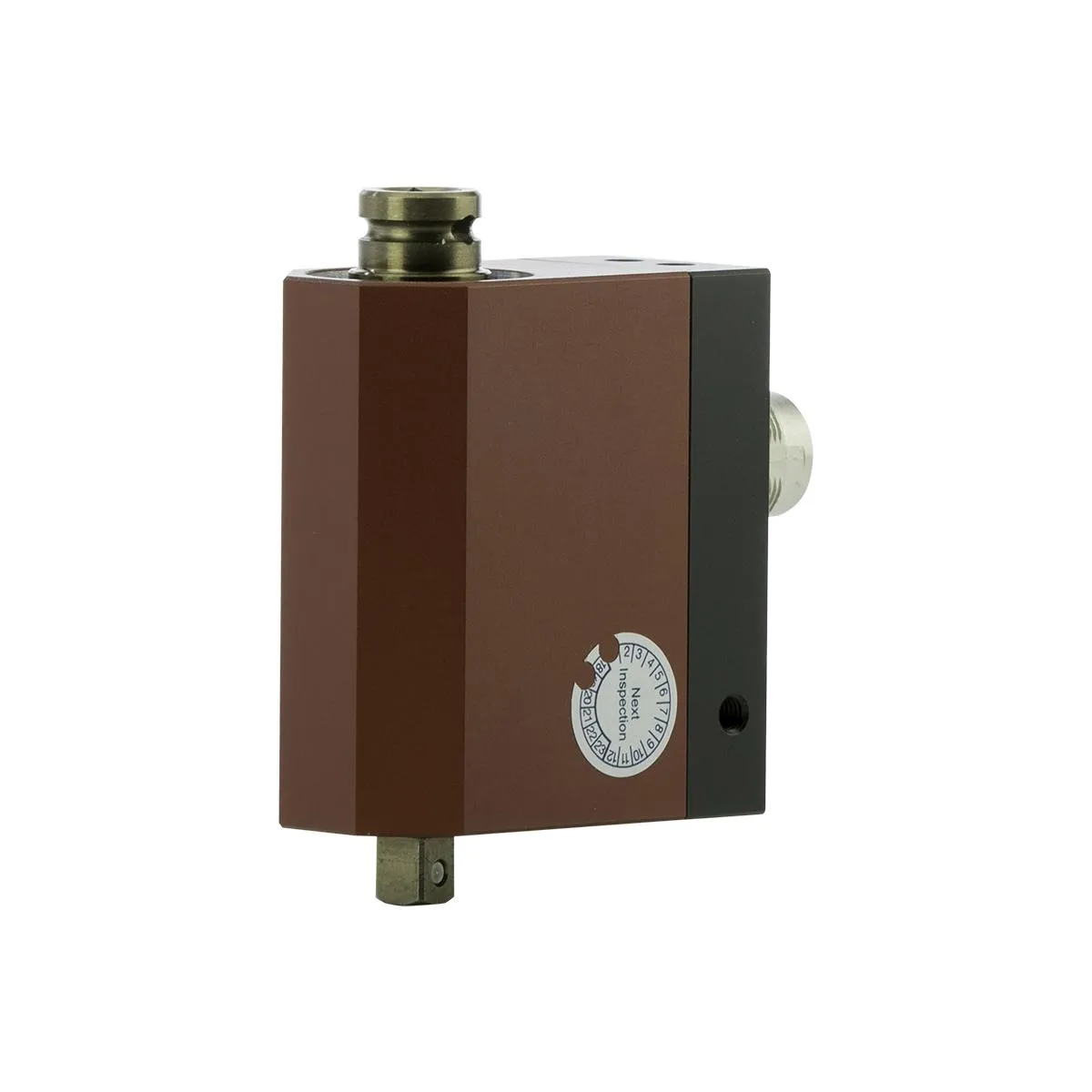

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.

Accuracy ± .2% of full scale

The brushless rotary torque sensor is a compact design & bi-directional.
The common brush bounce that plagues the accuracy testing of is cured when using a BLRTSX.
Bi-directional.
Non-Contact signal transfer and maintenance free.
For use with most power tools, high RPM tools, or rotational measurement applications.
Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the or .

This is the stand alone accuracy statement for the BLRTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer ( or ).

WARNING! Not recommended for impact wrenches.
