Specs

Model:

RTSX50F-A

Item #:

170221

American:

5 - 50 lbf.ft

S.I.:

6.8 - 67.8 N.m

Metric:

0.7 - 6.9 kgf.m

Input Drive:

3/8 F/Sq

Output Drive:

3/8 M/Sq

Tool Length:

Tool Width:

1.5

Tool Height:

2.3

Cal Cert Options Data Set:

Supplied with a Free ISO 17025 Certification of Calibration

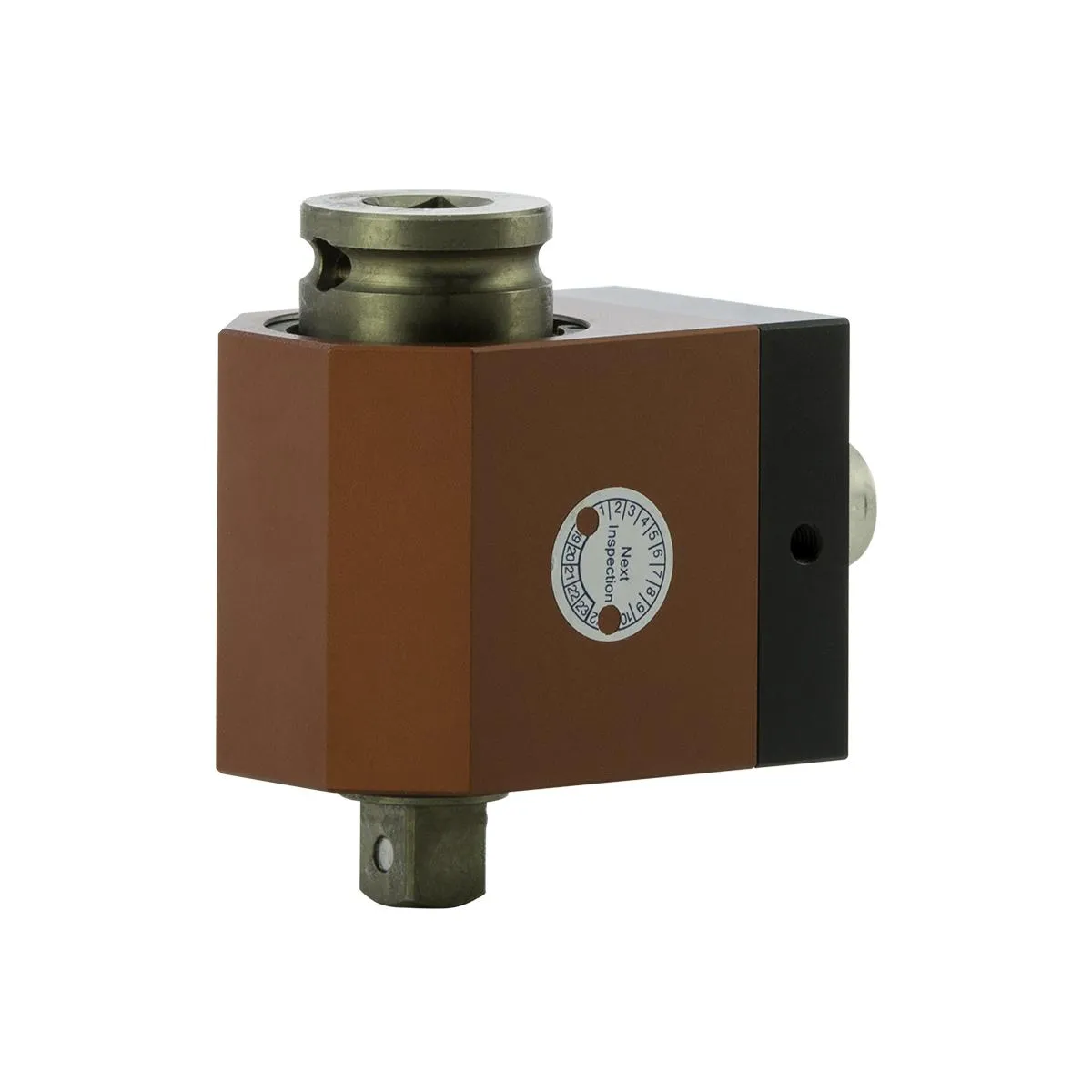

The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.

Accuracy ± .25% of full scale

Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
Angle output: 2-channel quadrature, 360 pulses per rotation.
Bi-directional.
For use with most power tools and rotational measurement applications.
Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the and .

This is the stand alone accuracy statement for the RTSX-A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer ( or ).

WARNING! Not recommended for impact wrenches.
