Product Details
＋
Product Description
-

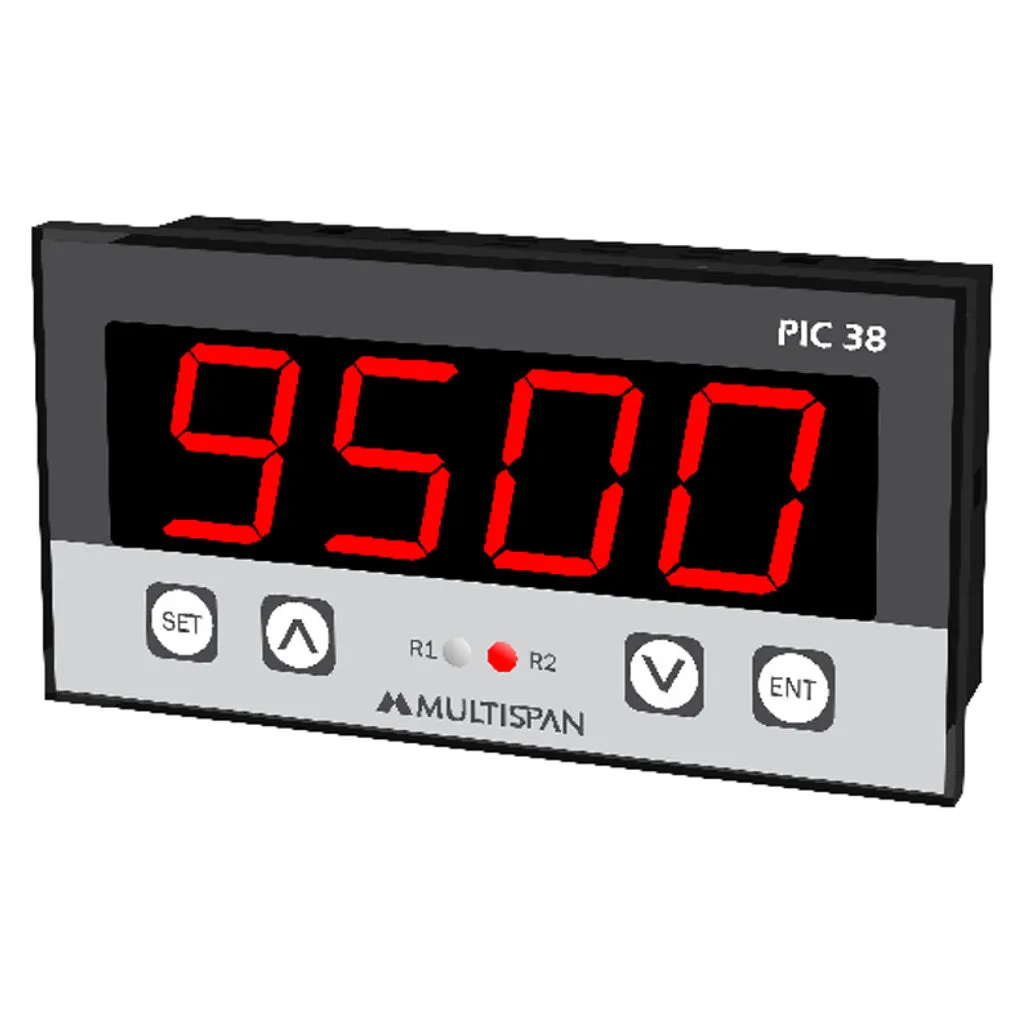

4 Digit , 7 Segment Led Display
-
Analog Input -4-20ma/0-10v Dc/0-20ma Dc
-
Up To 2 Relay
-
24v Dc Transmitter Power Supply
-
Retransmission Output
-
Rs-485 Modbus Output
Product Specification
|
Brand |
Multispan |
|
Product Type |
Process Controller |
|
Product Model |
PIC-38 |
|
Digits |
4 Digit |
|
Input |
0 to 10V DC / 4 to 20mA DC / 0 to 20mA DC(Configurable) |
|
Range |
-999 to 9999(Configurable) |
|
Outputs |
|
|
Output 1 |
1 Relay (By Default) |
|
Output 2 |
2 Relay (Optional) |
|
Output 3 |
24V DC Transmitter Supply@30mA (By default) |
|
Output 4 |
4-20mA m 0-20mA DC Retransmission Output(Factory Set)(Optional) |
|
Operating Mode |
High / Low / Inband / Outband / Absolute Low / Absolute Outband Alarm(Cinfigurable) |
|
Accuracy |
±% of FSD |
|
Supply |
100 to 270V AC,50/60Hz |
|
Dimension (HxWxD) |
48 x 96 x 65 mm |
|
Panel Cutout |
46 x 92 mm |
