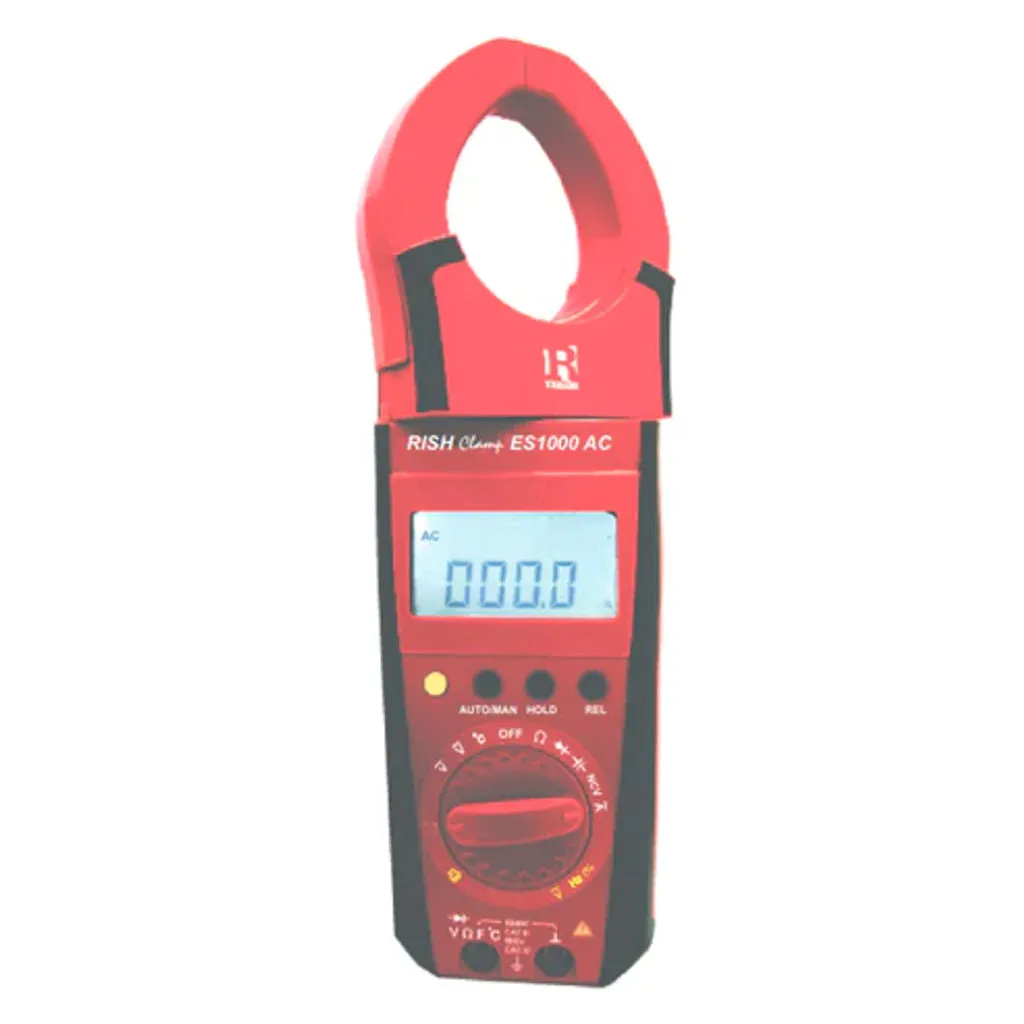

Product Description
-
Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access
-
Clamp jaws can be opened or closed with the trigger placed at the bottom side away from the jaws
-
This allows the user to place his/her hand at safer distance from live conductor
-
The comfortable operation of push buttons and function selector switch, in adverse field conditions
-
Large Jaw Opening
-
Narrow housing for firm grip and easy to carry
-
High Accuracy for low current measurement
-
User selectable Backlit
-
Temperature Measurement from 0 to 1300 °C using K-Type thermocouple sensors
-
Auto Power Off
-
Relative Measurement
-
DATA Hold Function
-
The instrument can measure frequency (Hz) and Duty cycle (%) of AC voltage by pressing yellow key in VAC function
-
NULL ZERO Correction for Resistance
-
Non contact voltage (NCV) detection
-
AUTO and MANUAL ranging modes
-
Diode Measurement
-
Protection from dust and water IP20 for terminals as per IEC60529
-
Applicable International Safety standards 600 V CAT III/1000V CAT II as per International Safety standard IEC 61010-1- 2010
-
Double molded Cover for soft touch and firm grip of the Instrument
Product Specification
|
Brand |
Rishabh |
|
Product Type |
Clamp Meter |
|
Product Model |
ES 1000 |
|
Display |
3¾ Digit 7 Segment LCD Display |
|
Display Counts |
3999 |
|
Jaw Opening Size |
51 mm |
|
Ac Voltage Range |
400 mV-1000 V |
|
AC Voltage Accuracy |
±(1.0 % 10 Digits) |
|
Dc Voltage Range |
0-1000 A |
|
Dc Voltage Accuracy |
±(0.5 % 2 Digits) |
|
Ac Current Range |
0-400 A |
|
AC Current Accuracy |
±(1.5 % 5 Digits) |
|
AC Current Resolution |
100 mA / 1 A |
|
DC Current Accuracy |
±(0.5 % 2 Digits) |
|
Resistance Range (Ohm) |
0-40 MΩ |
|
Resistance Accuracy |
±(2.0 % 5 Digits) |
|
Capacitance Range (F) |
5 nF-200 µF |
|
Capacitance Accuracy |
±(5.0 % 10 Digits) |
|
Frequency |
0-500 KHz |
|
Frequency Accuracy |
±(0.2 % 2 Digits) |
|
Temperature Range(C) |
0° to 1300°C |
|
Temperature Accuracy |
±(2.0 % 3 Digits) |
|
Operating Environment |
0° to 40°C |
|
Relative Humidity |
<75 % RH |
|
Power Input |
2 AAA Batteries 1.5 V |
|
Max. DC Voltage Range |
601-1000 V |
|
Max. AC Current Range |
601-1000 A |
|
Max. AC Voltage Range |
Above 750 V |
|
Dimensions |
270x90x70 mm |
|
Weight |
Rishabh Digital AC Clamp Meter 1000 A 1000 V ES 1000$ 80.28 $ 61.75 Please select combo product attributes
